Smart Reverse Camera with Auto-tilting View Angle
A reverse camera with a 180° fish-eye lens and built-in mmWave radar. It shows both sides behind the car and tilts its view automatically as you get closer to an obstacle.
- 180° ultra-wide view with a fish-eye lens
- View angle tilts automatically, guided by mmWave radar
- 3-segment split screen: below the bumper and both sides of the rear
- Four models: RC-062, RC-110, RC-120, RC-320
See everything behind your car when reversing
ASUKA's smart reverse camera combines millimeter-wave radar, an ultra-wide fish-eye lens and sensor-fusion algorithms. You see what's below and on both sides of the rear, and the view changes by itself as you get closer to an obstacle.
- 180° Ultra-Wide, 3-Segment View
- Auto-Adjusting View Angle
- Built-In 60GHz Radar
- Built-In ISP for a Corrected Image
What changes when you reverse
More than a rear view: you see the blind spots beside the car, and the camera knows when to look down.
- 01
See Both Sides Behind the Car
The 180° fish-eye lens and built-in ISP split the view into three: below the bumper and both rear corners. Cars and people coming from the sides are easy to spot.
- 02
The View Changes as You Get Closer

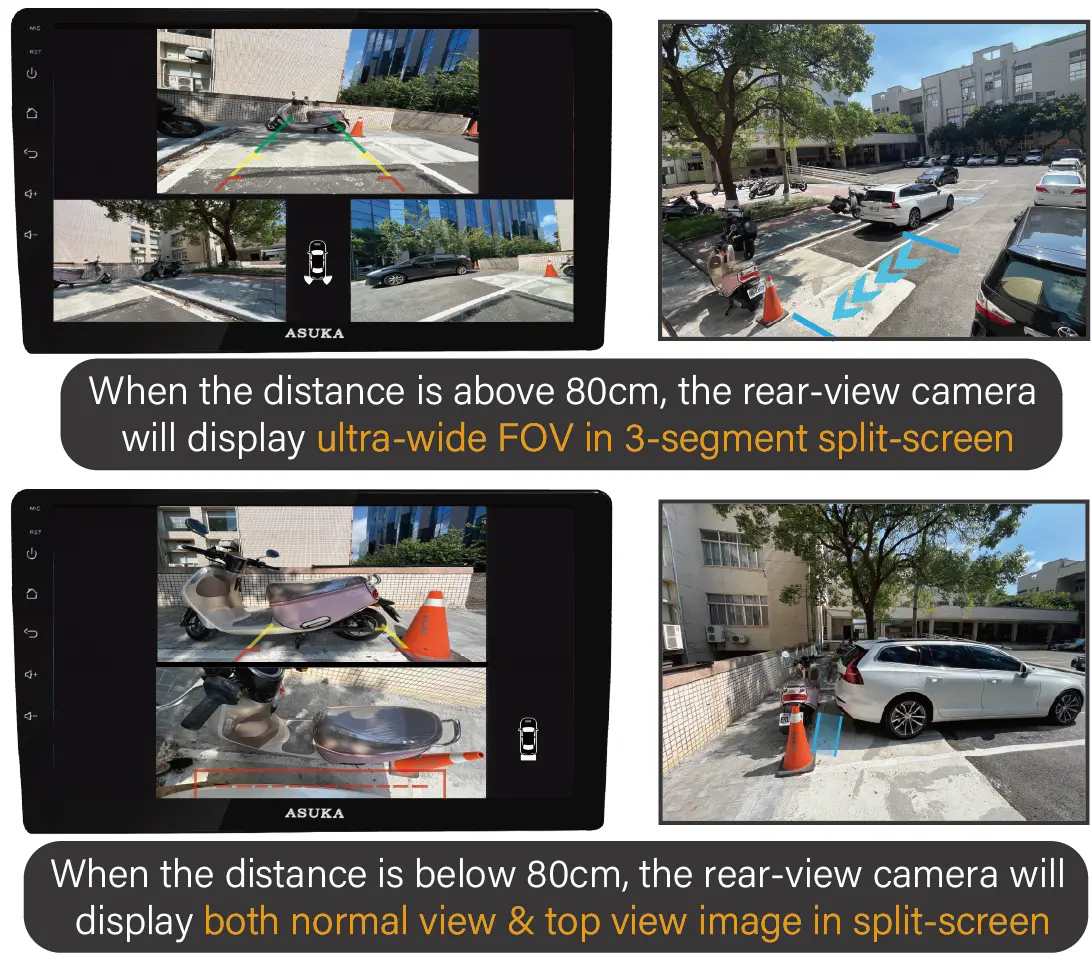

More than 80 cm from an obstacle, you see the ultra-wide 3-segment view. Closer than 80 cm, the camera tilts down and shows a normal view and a top-down view side by side.
- 03
Radar That Measures the Distance
The built-in 60GHz radar (ASUKA RB-60D2) covers 120° and detects obstacles up to 2 m behind the car. Available on RC-110, RC-120 and RC-320.
Specifications
| Models | RC-062, RC-110, RC-120, RC-320 |
|---|---|
| Field of view | More than 180° (horizontal) |
| Lens | RC-062, RC-110: 2G3P; RC-120, RC-320: 6G |
| Image sensor | RC-062: PS5162; RC-110: SC101IoT; RC-120: SC120AT; RC-320: OX01E20 |
| Resolution | RC-062: 1288 × 728 @ 15fps; RC-110: 1280 × 720 @ 30fps; RC-120: 1288 × 968 @ 30fps; RC-320: 1344 × 1020 @ 40fps |
| Dynamic range | RC-062: 77.5dB; RC-110: 83dB; RC-120: up to 120dB; RC-320: up to 140dB |
| Sensitivity | RC-062: 5100; RC-110: 7280; RC-120: 8083; RC-320: 27502 (mV/lux·s) |
| ISP | AVS 7150 |
| Radar | RC-110, RC-120, RC-320: ASUKA RB-60D2 (60GHz, 120°, up to 2 m); RC-062: none |
| Video output | RC-062, RC-120, RC-320: AHD; RC-110: CVBS |

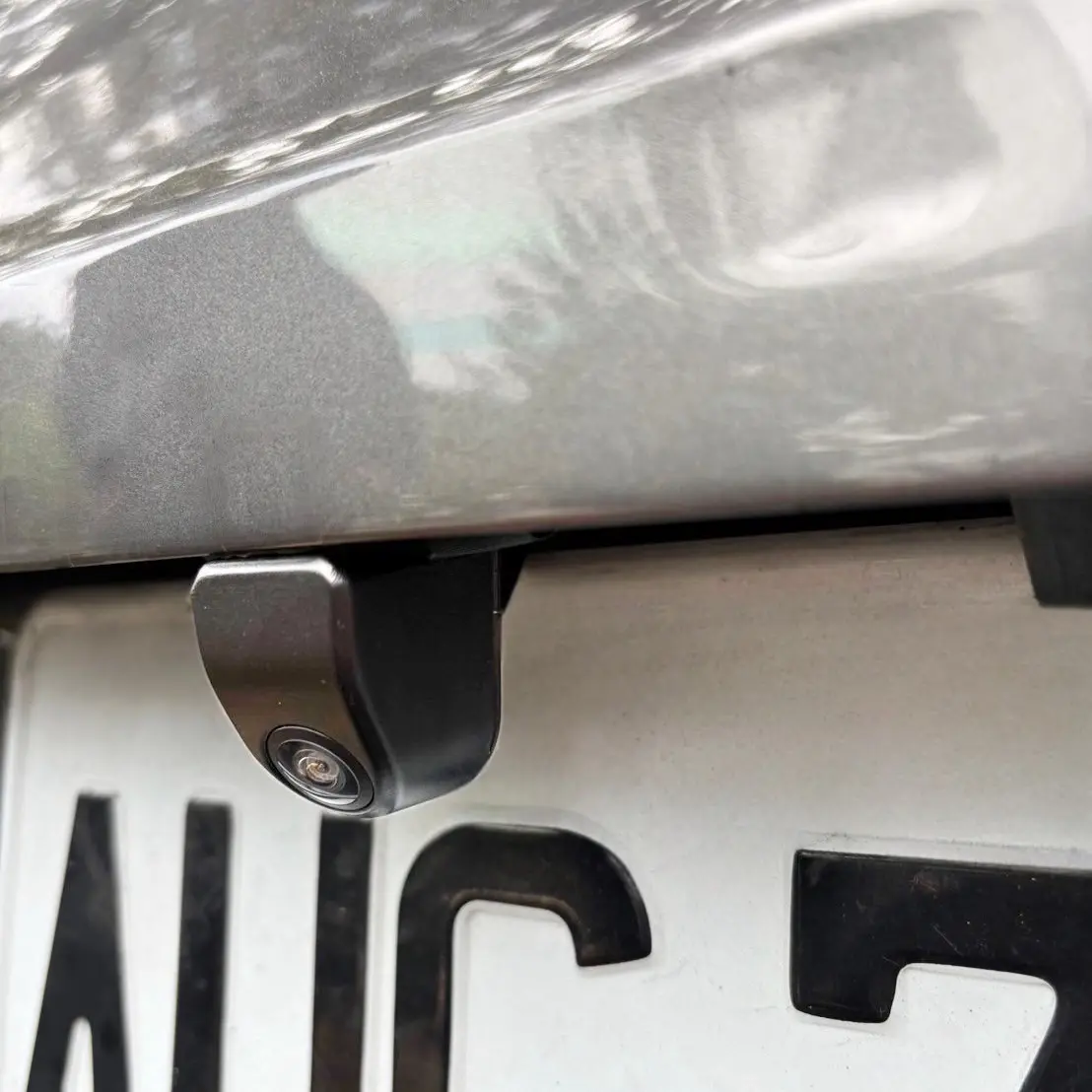

| Installation | Above the rear license plate |
