Industrial PC and IoT Gateway in One
A fanless industrial PC that also works as an IoT gateway. Typical uses include connecting machines on the factory floor, collecting data at remote energy and utility sites, analysing camera video on site, and controlling AGVs in warehouses.
- Intel 13th Gen Core i5 (AIS-200) or Core i7 (AIS-200i)
- Operating temperature 0 to 60°C (AIS-200) or −40 to 75°C (AIS-200i)
- Wi-Fi 6, Bluetooth and 5G RedCap / 4G LTE built in
- Fanless design
Choose by site temperature and workload
The AIS-200 and AIS-200i use the same enclosure and the same I/O. They differ only in processor and operating temperature. For a climate-controlled site that collects and processes data, the AIS-200 is the balanced choice. For sites that get very cold or very hot, or for AI inference across several video streams, choose the AIS-200i.
What you get with the AIS Series
No fan to maintain, the same wiring on both models, and Wi-Fi and 4G/5G built in to send data to the cloud.
- 01
Fanless, Less Maintenance
Heat leaves through the finned enclosure. With no fan to wear out, there is one less part to maintain.
- 02
Two Models, the Same I/O

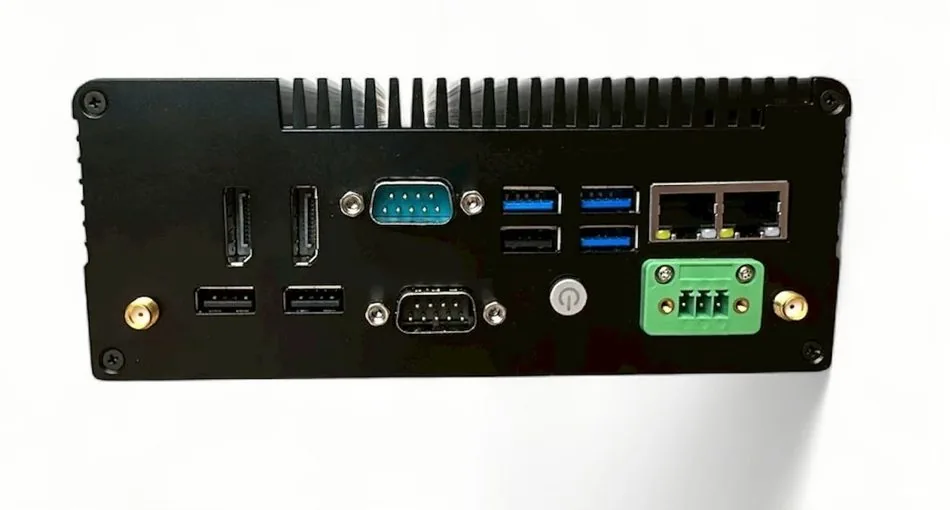

Both models have dual 2.5 Gigabit LAN, 2x DisplayPort, 3x USB 3.2, 3x USB 2.0 and two COM ports. Switching models does not change the wiring.
- 03
Sends Data to the Cloud on Its Own
Wi-Fi 6, Bluetooth 4.2 and 5G RedCap or 4G LTE are built in, so it can work as the site's IoT gateway without a separate device.
- 04
Designed and Built in Taiwan
The board and the complete system are designed and manufactured in Taiwan, on an Intel x86 platform with a traceable supply chain.
Where the AIS Series is used
The AIS Series is planned for the fields below. The configuration is adjusted to each site.
Specifications
| Processor | AIS-200: Intel Core i5-1335UE (13th Gen), 10 cores / 12 threads, up to 4.5 GHz AIS-200i: Intel Core i7-1370PRE (13th Gen), 14 cores / 20 threads, up to 4.8 GHz |
|---|---|
| Memory | DDR5 SO-DIMM, 8 GB standard; 16 GB / 32 GB optional |
| Storage | M.2 NVMe SSD, 256 GB standard; 512 GB / 1 TB / 2 TB optional; or SATA SSD |
| Display output | 2x DisplayPort; eDP / LVDS optional |
| Ethernet | Dual 2.5 Gigabit LAN |
| USB | 3x USB 3.2, 3x USB 2.0 |
| Serial ports | COM1 RS232 / RS422 / RS485, COM2 RS232 |
| Wireless | Wi-Fi 6, Bluetooth 4.2; 5G RedCap / 4G LTE |
| Power input | 12 V DC |
| Operating temperature | AIS-200: 0 to 60°C AIS-200i: −40 to 75°C |
| Operating system | Windows IoT Enterprise, Linux Ubuntu; other OS on request |
