Radar Modules That Sense Presence, Distance and Position
Small 60GHz radar modules that let a product sense people and objects: whether someone is there, how far away they are, and where they are moving. They are built into lighting, displays, smart door locks, roadside parking sensors and security cameras, and keep working behind a plastic housing, in the dark and outdoors.
- Built on Infineon 60GHz radar chips; ASUKA is an Infineon Preferred Partner
- Presence, distance and multi-target position sensing in one product family
- Senses through plastic, wood and glass, day and night, indoors and outdoors

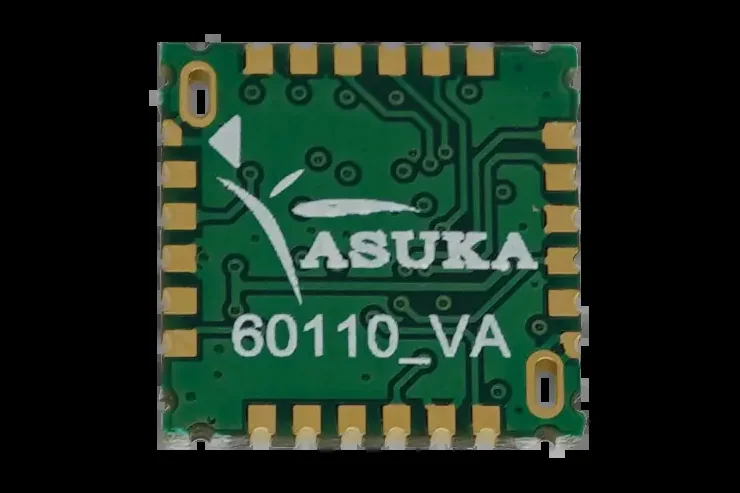

- Small and low power: the RB-60110 is 12 × 12 mm and draws under 10 mW
Choose by what your product needs to know

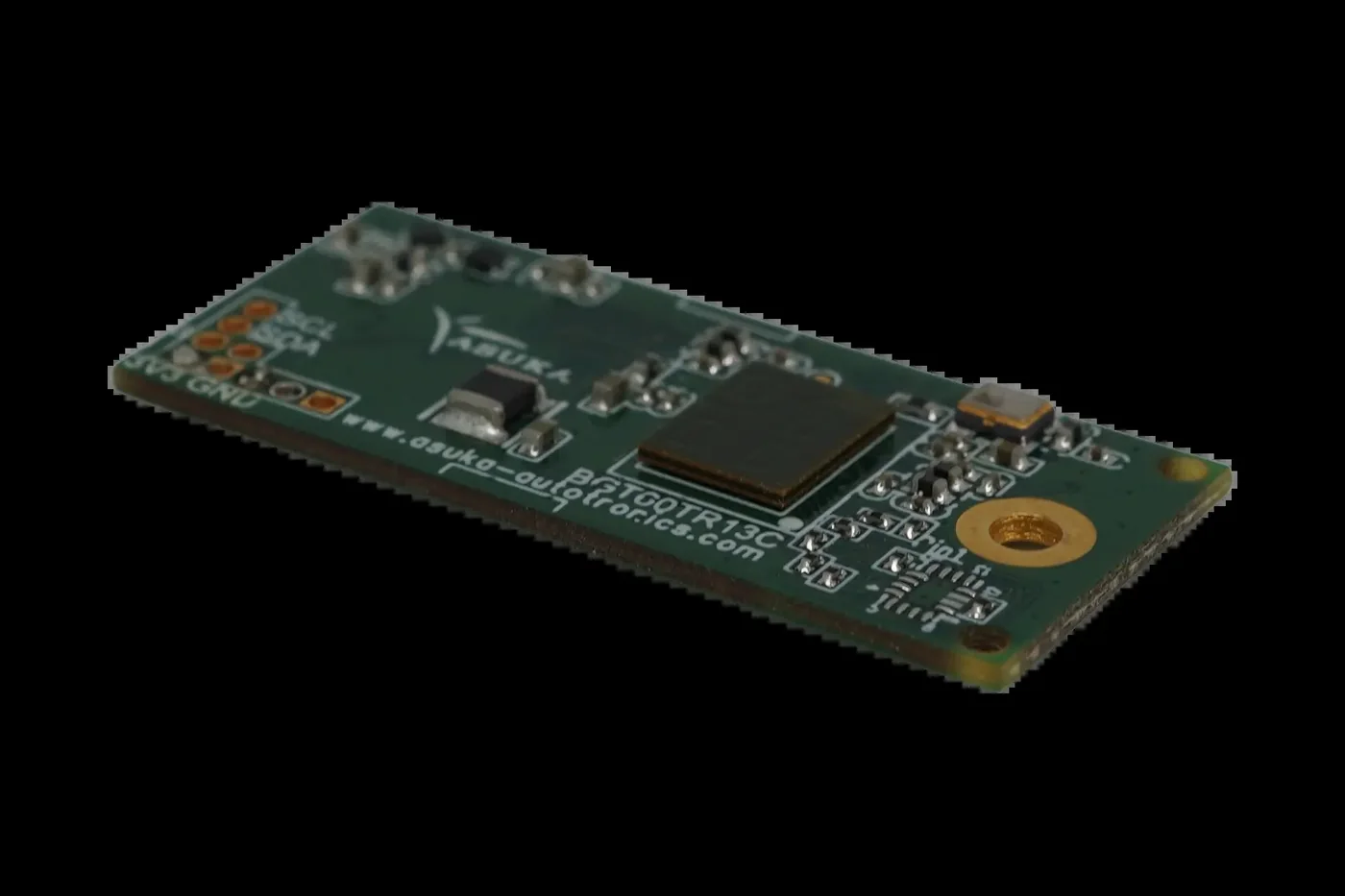

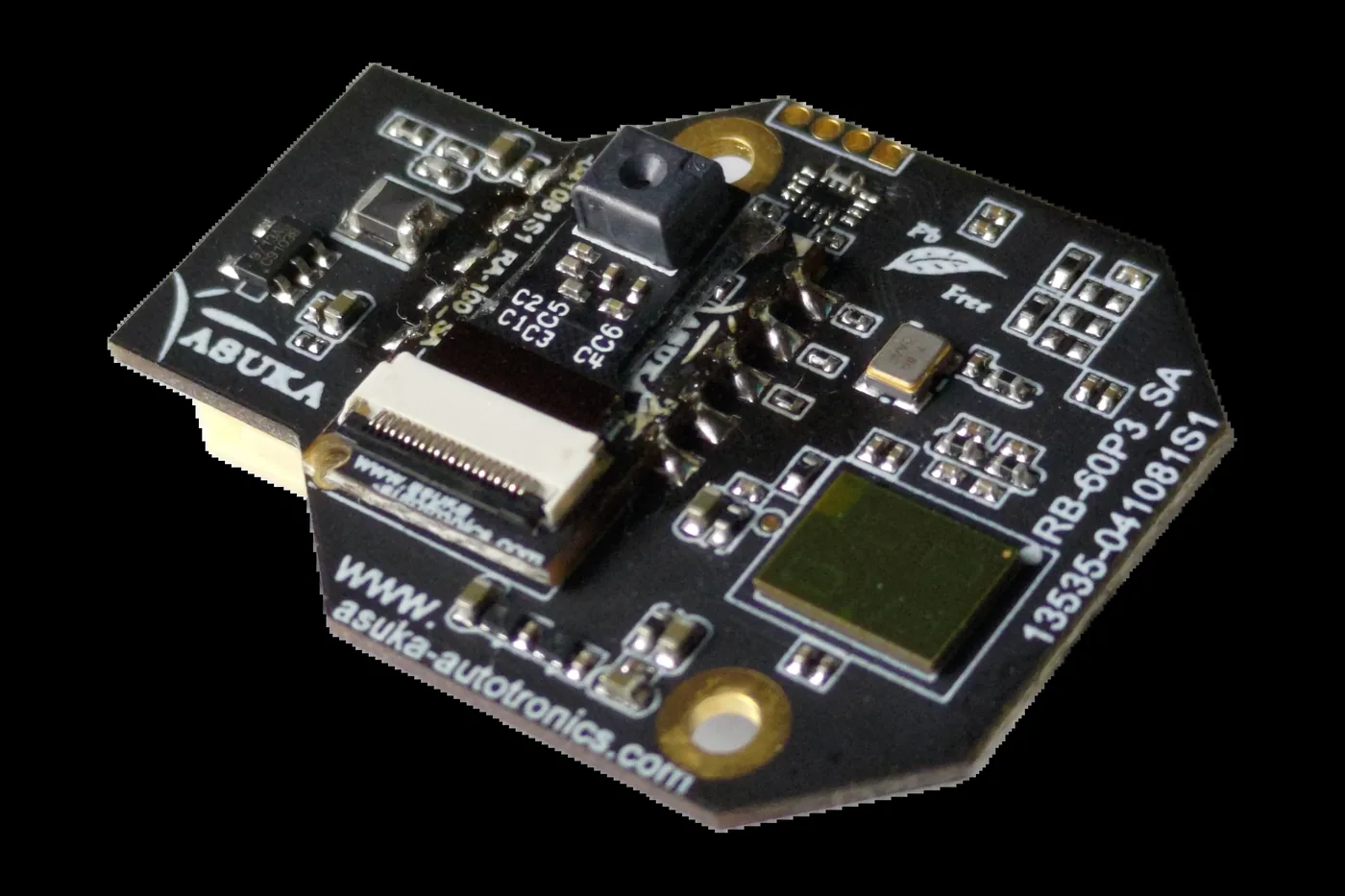

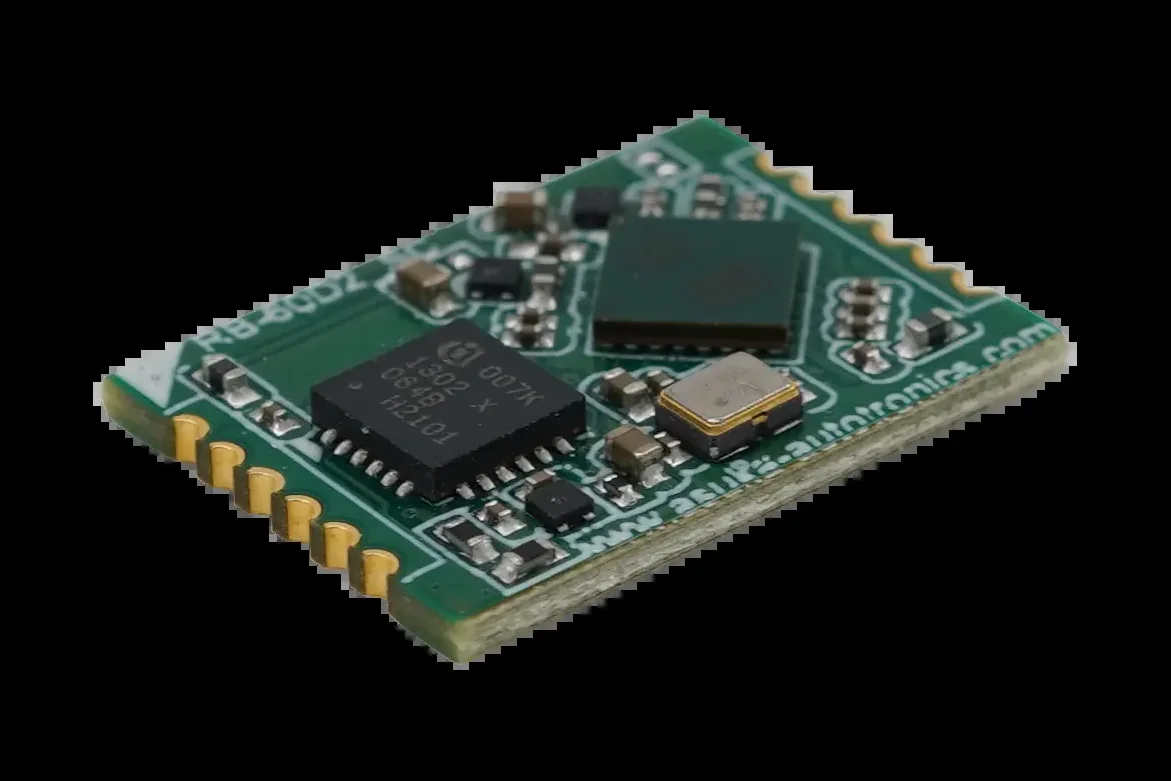

To know whether someone is there and which way they are moving, use the RB-60110. To know how far away an object is, use the RB-60D2. To know where several people or objects are and how they move, use the RB-6013. The RB-6013CA (3D tracking) and RB-60P3 (fusion module) are also available; ask our team for details.
- Presence & Motion Direction
- Distance Up to 15 Meters
- Up to 20 Targets Tracked
- Hidden Behind the Housing
What you get with ASUKA radar modules
Radar sensing that is ready to design in, without starting from radar signal processing.

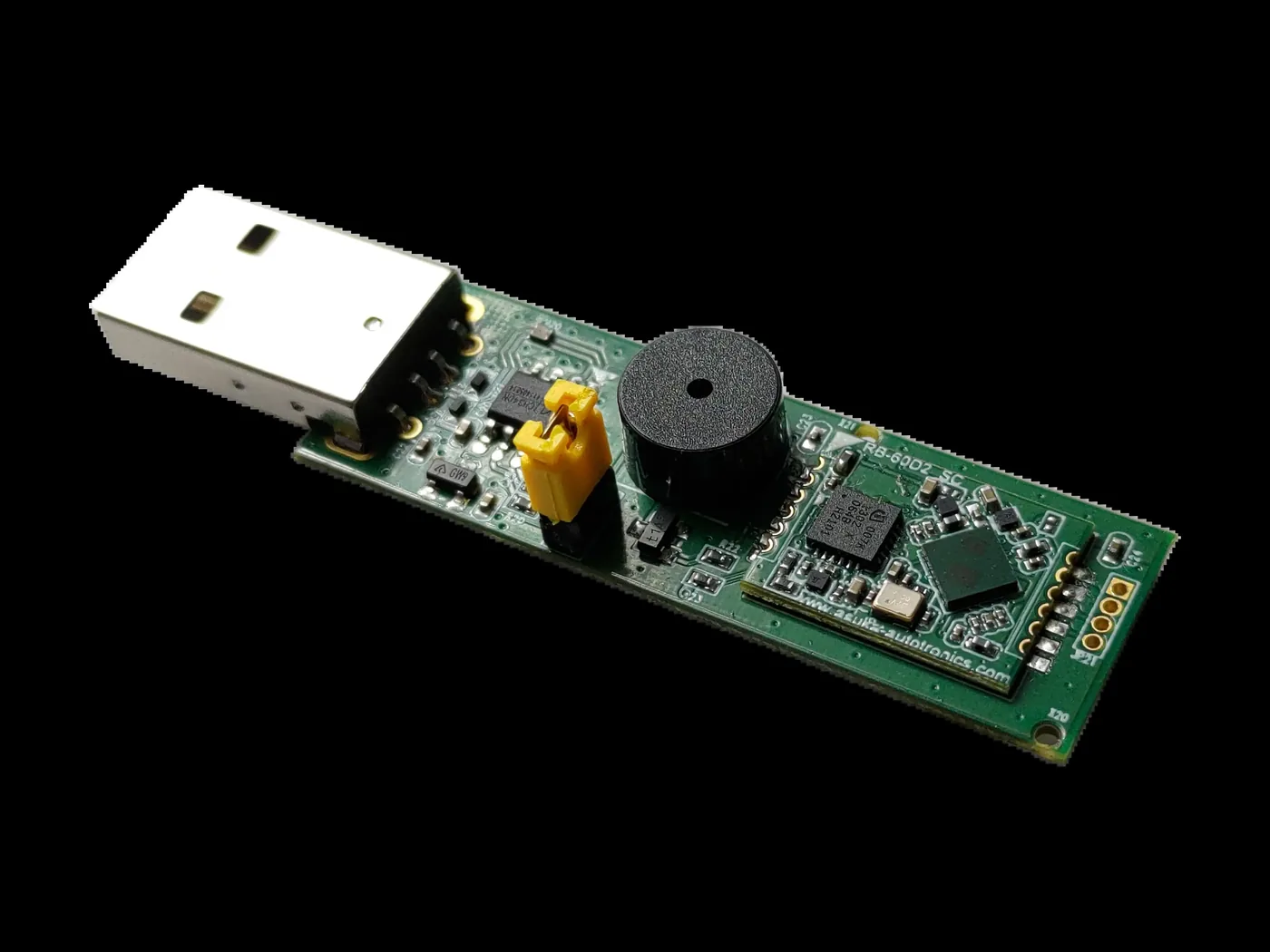

RB-60D2On a USB Evaluation Board- 01
Ready to Design In
The algorithms run on the module, so your product receives ready-to-use results such as presence, direction, distance or target coordinates. Integration does not require knowledge of radar signal processing.
- 02
Hidden Behind the Housing
Radar waves pass through plastic, wood and glass, so the module can sit out of sight inside the product.
- 03
Day or Night, Indoors or Outdoors
Radar is not affected by light, and the modules keep false alarms low in both indoor and outdoor use.
- 04
The RB-60110 Can Be Tuned to the Application
The RB-60110 offers 16 sensitivity levels, a detection distance of up to 8 m, a hold time from 0.1 s to 30 min and four selectable operating frequencies.
Where our radar modules are used
Specifications
| Detects | RB-60110: presence and motion direction (approaching / moving away) RB-60D2: distance to objects RB-6013: position of up to 20 targets (range, speed, angle) |
|---|---|
| Operating frequency | 60 GHz band, Infineon radar chips RB-60110: 60.6 / 60.7 / 60.8 / 60.9 GHz, selectable |
| Antenna | RB-60110: 1 Tx / 1 Rx RB-6013: 1 Tx / 3 Rx |
| Modulation | RB-60110: pulsed RB-6013: FMCW |
| Detection range | RB-60110: up to 8 m (adjustable) RB-60D2: up to 15 m |
| Field of view | RB-60110: 80° × 80° RB-60D2: 30° (min.) RB-6013: 80° / 45° |
| Output | RB-60110: presence (TD) and direction (PD) signal pins RB-6013: target coordinates and reflected power |
| Supply voltage | RB-60110: 1.7–5.2 V |
| Power consumption | RB-60110: < 10 mW RB-60D2: < 20 mW RB-6013: < 30 mW |
| Dimensions | RB-60110: 12 × 12 mm, SMD (24-pin SIP) RB-60D2: 16 × 12 × 12 mm, < 5 g RB-6013: 31 × 14 mm, < 5 g |
| Operating temperature | RB-60110: −20 to 85 °C RB-6013: −20 to 70 °C |
